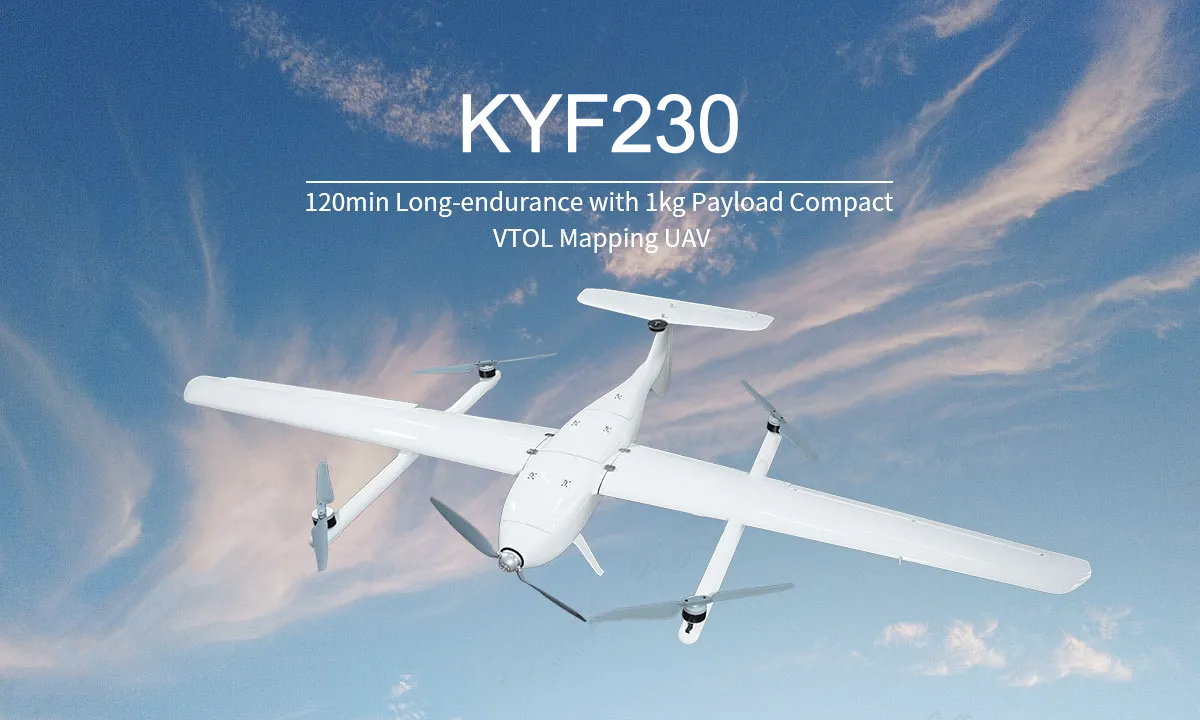

KYF230 2.5hrs Long-endurance with 1kg Payload Compact VTOL Mapping UAV

Product Description:

Essential details:

Condition:New

Place of Origin:China

Type:VTOL Fixed Wing

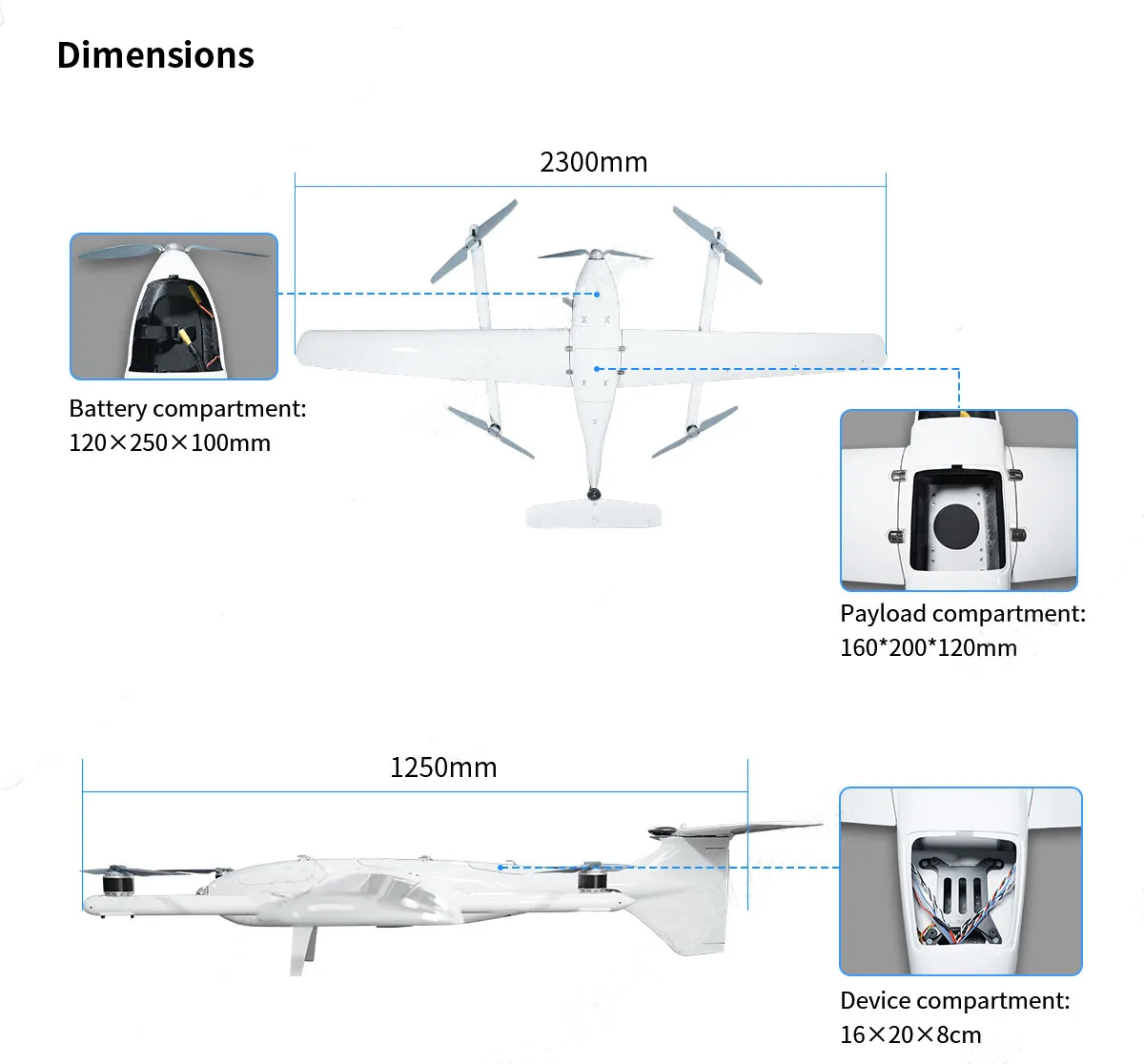

Wingspan:2300mm

Material:Carbon fiber + glass fiber +PVC

Airframe Weight:4kg(contains the power)

MTOW:8.2kg

Max Payload:1.3kg

Flight Time:160min no payload, 120min with 1kg payload

Flight Altitude:3000m

Wind Resistance:12m/s (fixed wing), 8m/s (VTOL)

KYF230 vertical take-off and landing fixed wing is a cost-effective, easy-to-use drone, with 2300mm wingspan, specially designed for mapping and survey.

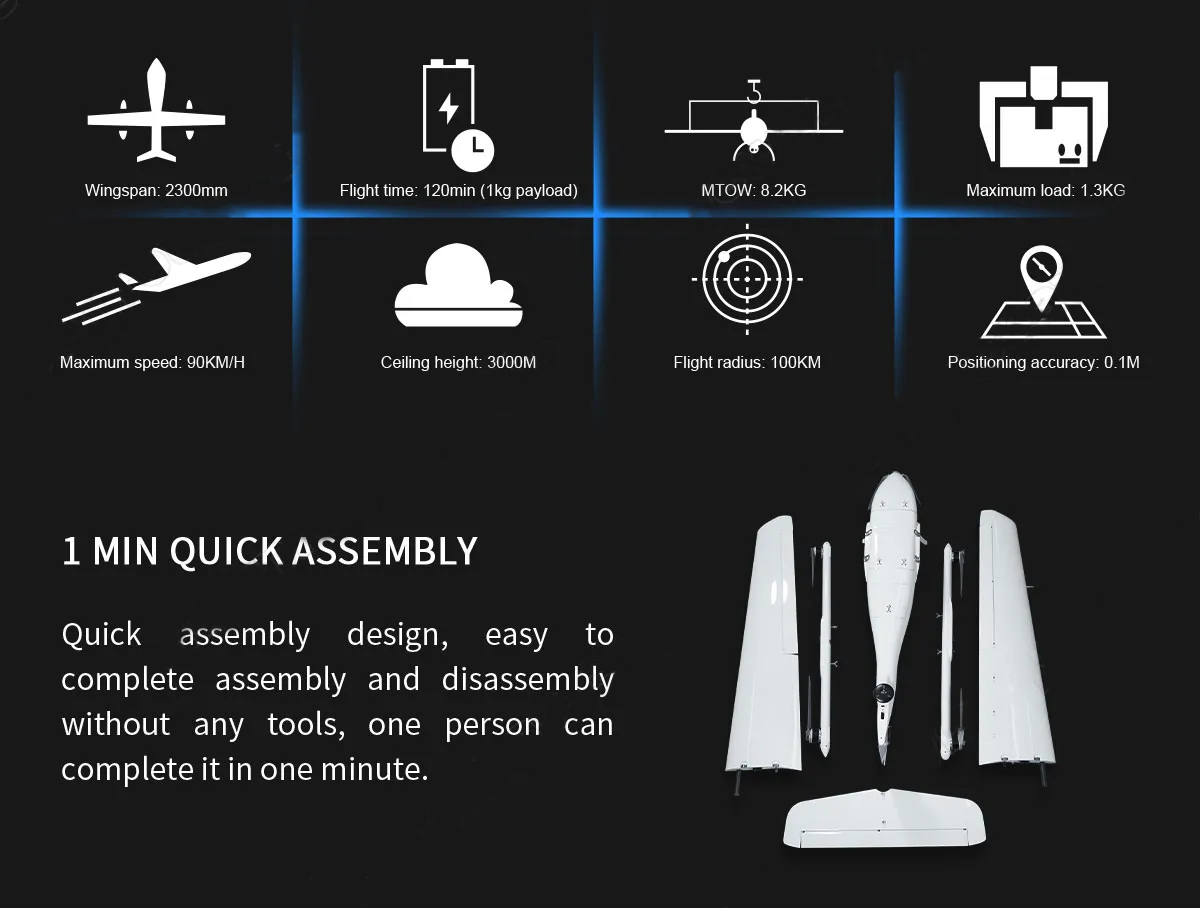

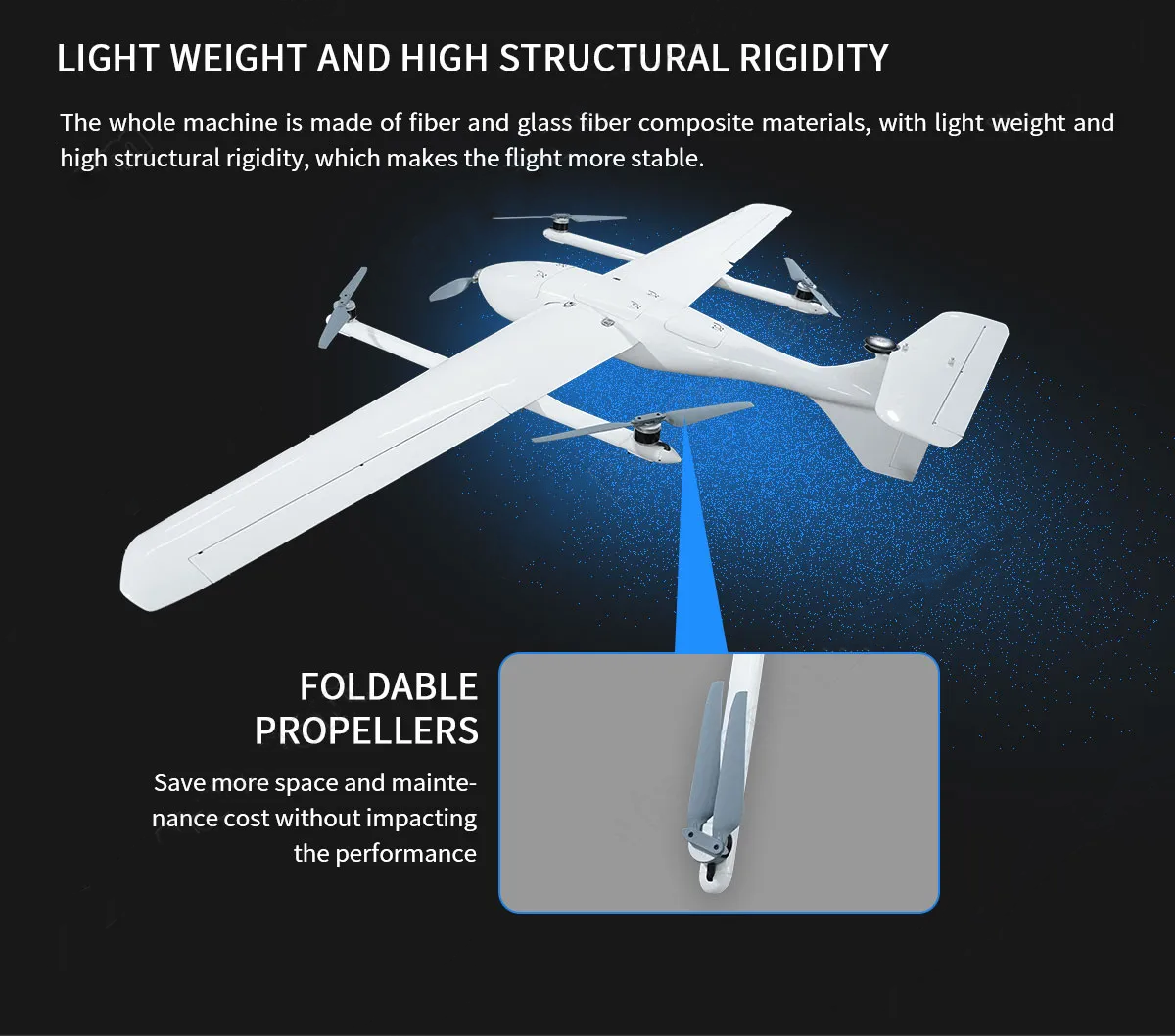

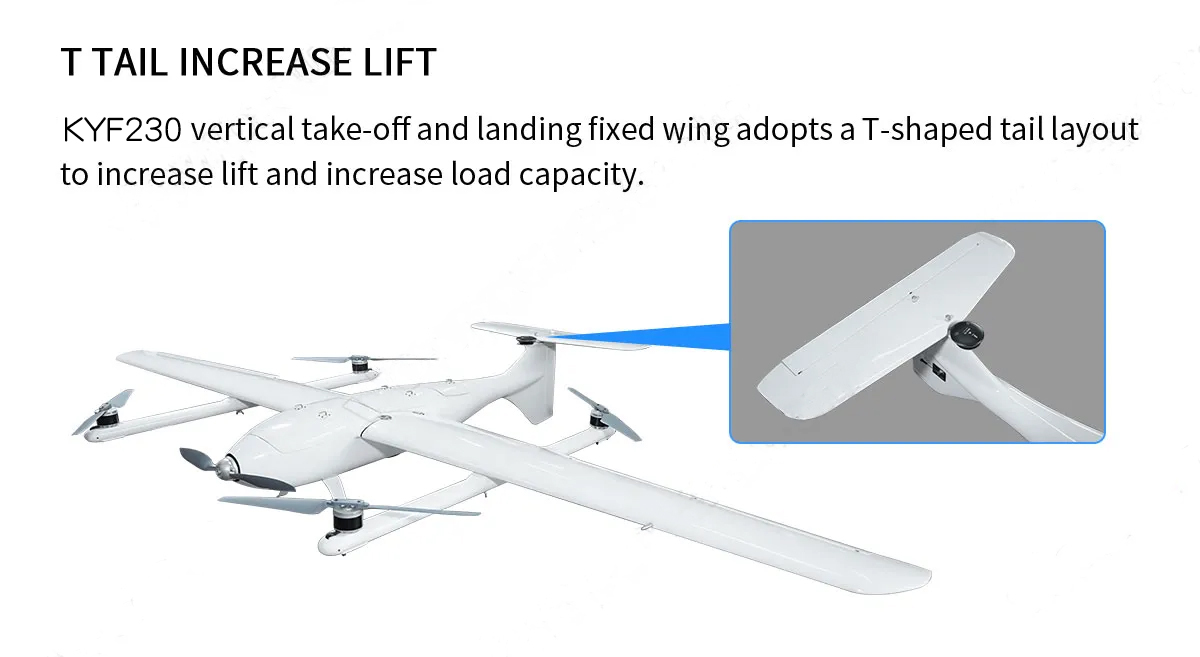

The whole machine is made of composite carbon fiber and glass fiber materials, with light weight and high structural rigidity, which makes the flight more stable while the smooth surface is reducing the wind resistance. T-shaped tail layout increases the lift capacity of KYF230. Quick assembly design, easy to complete

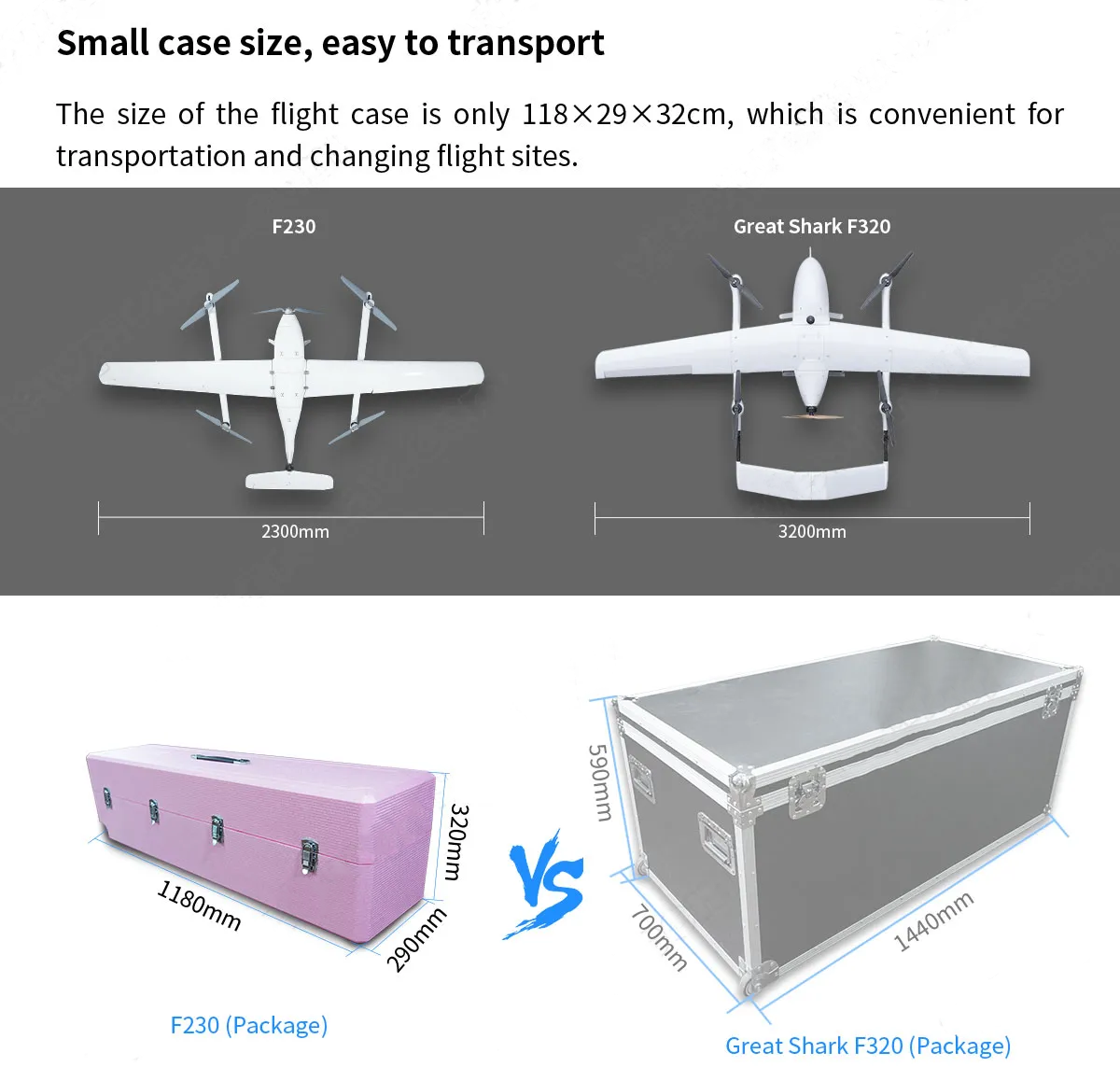

assembly and disassembly without any tools, one person can complete assembly in one minute.

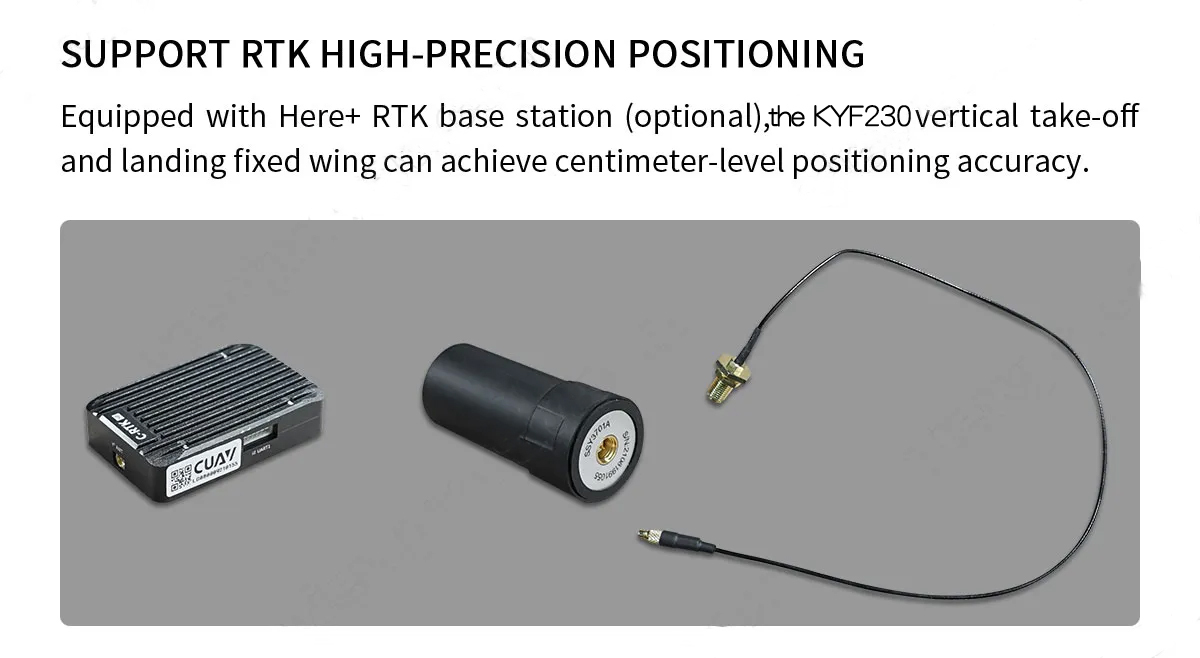

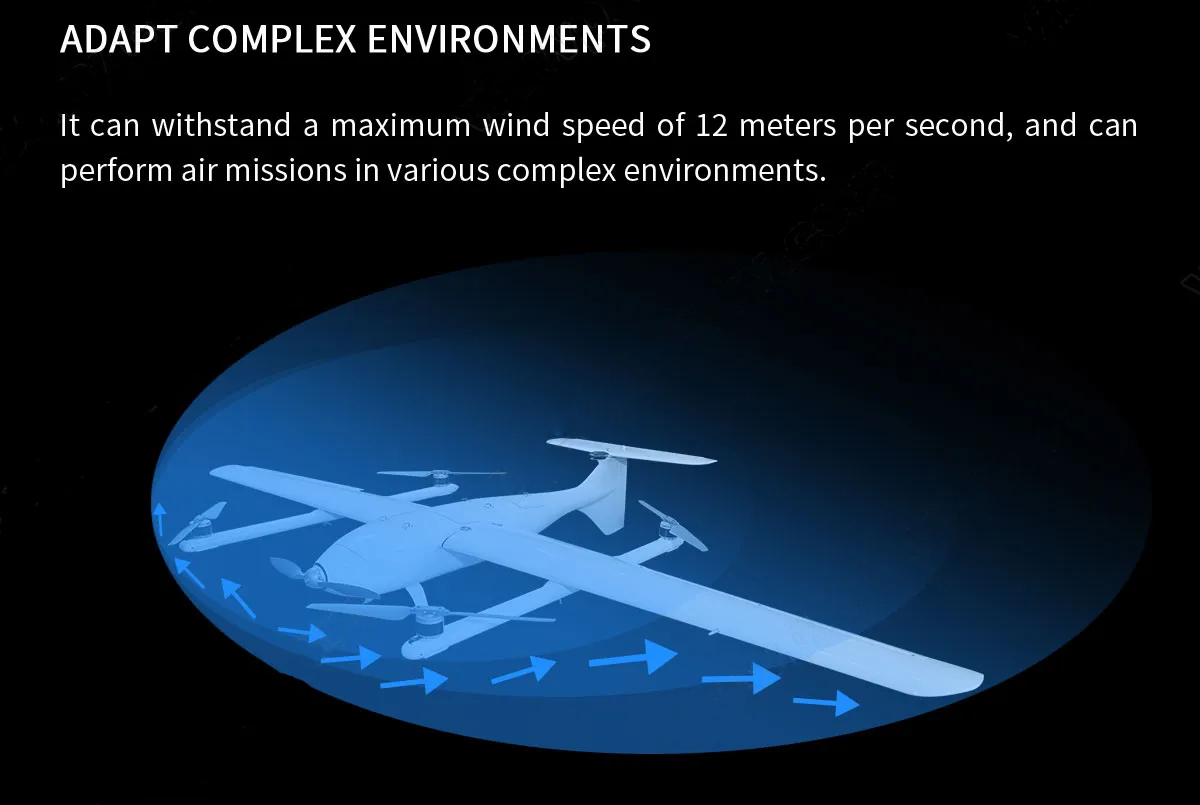

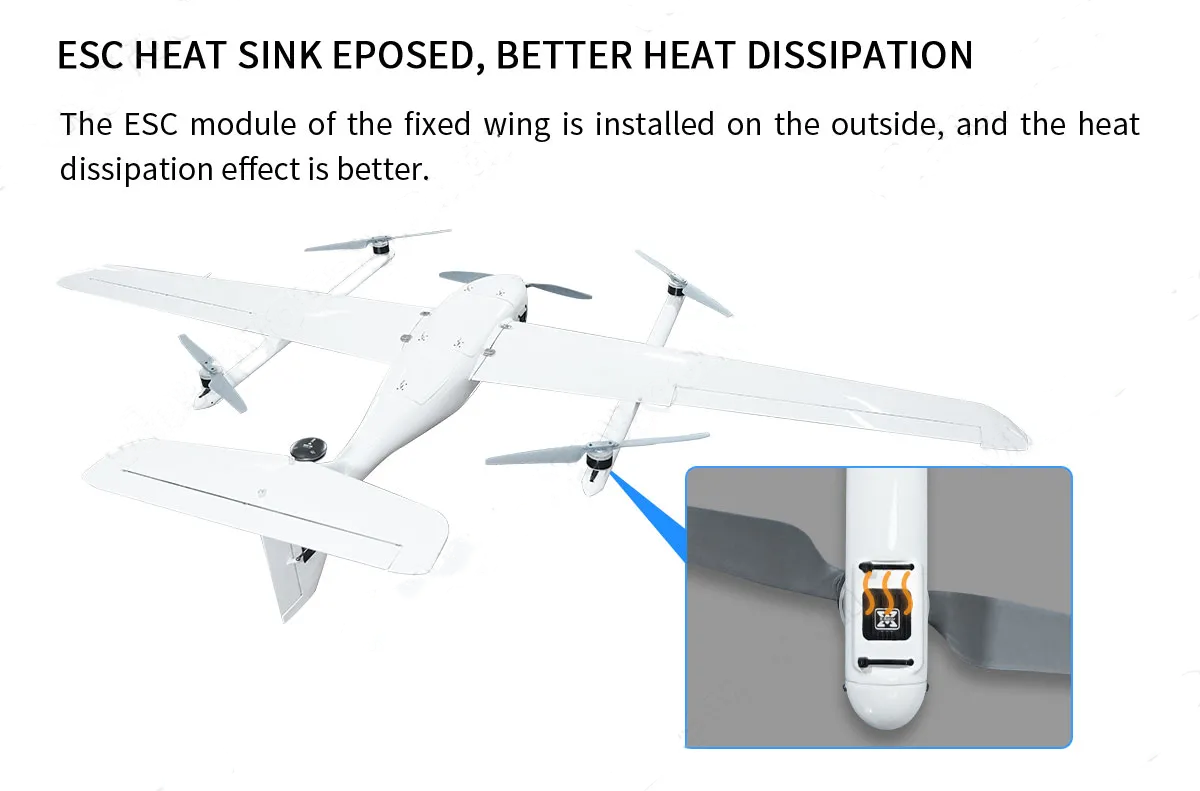

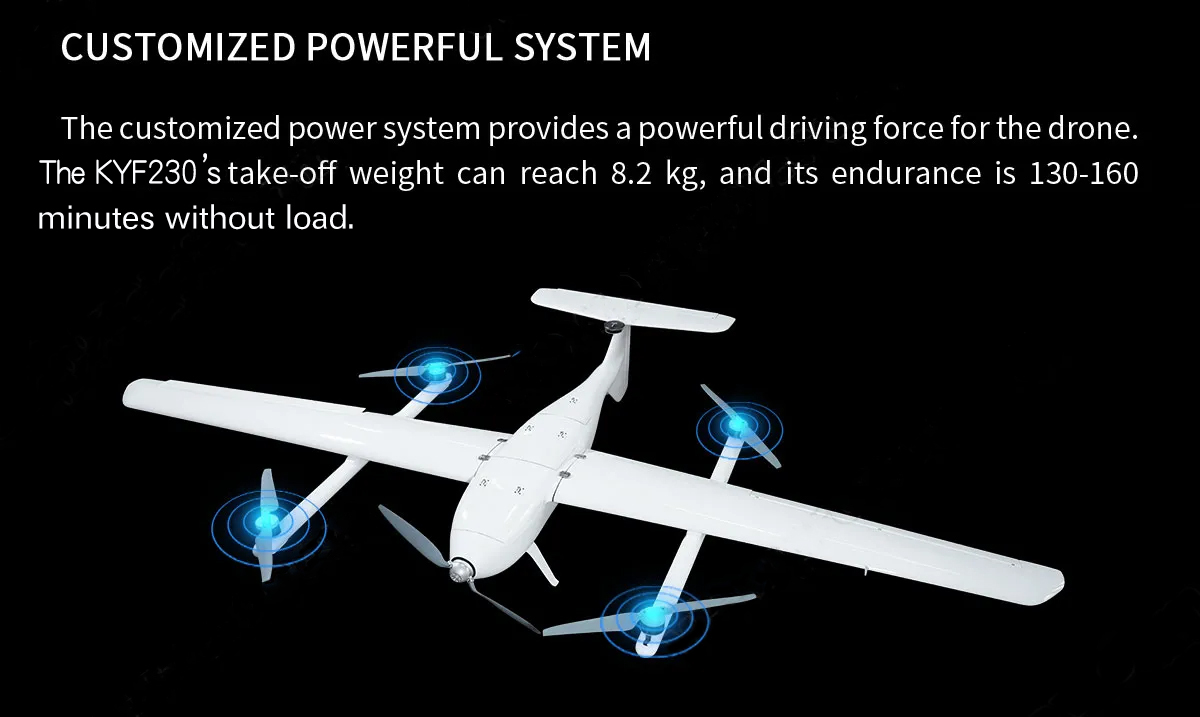

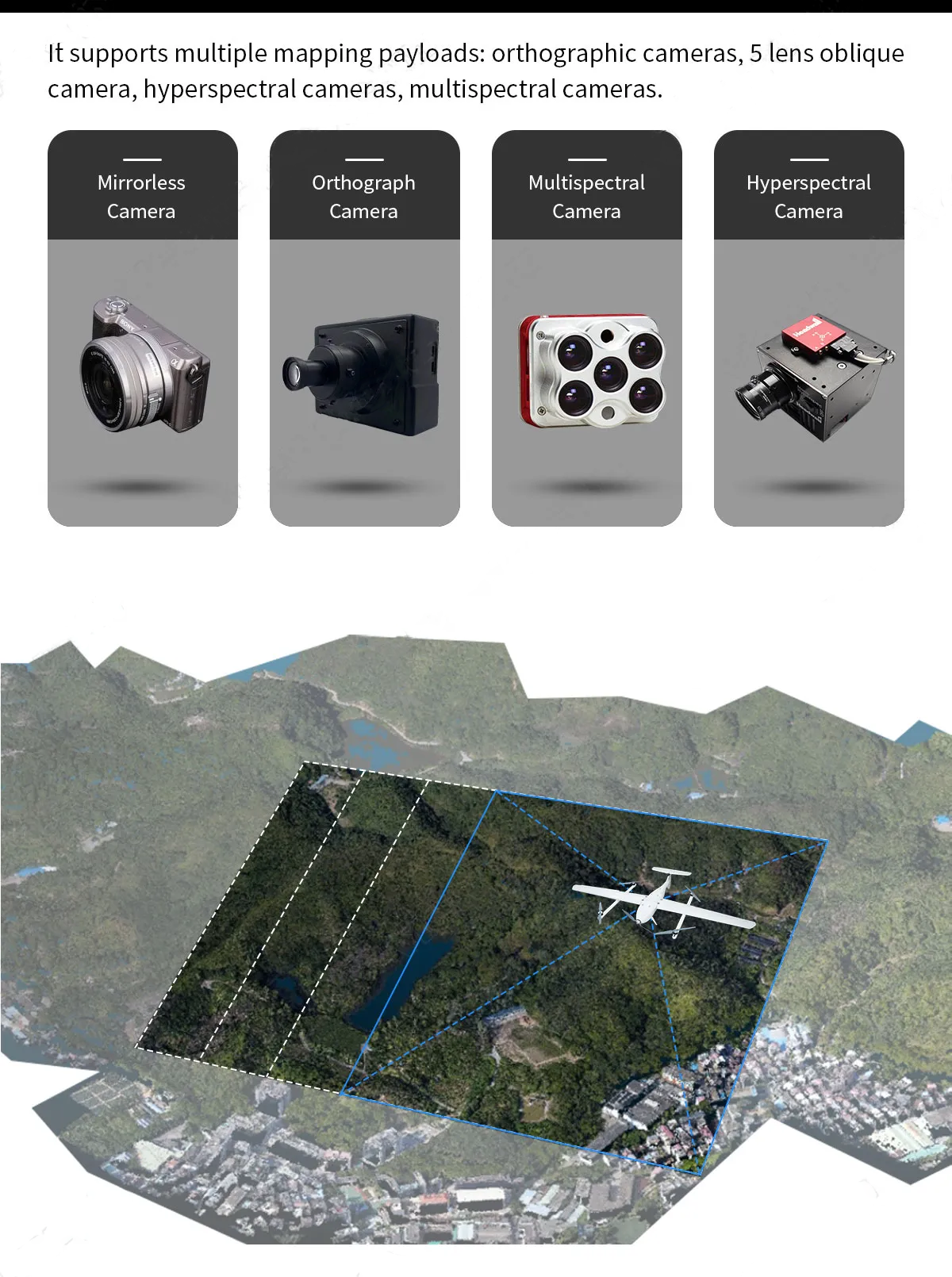

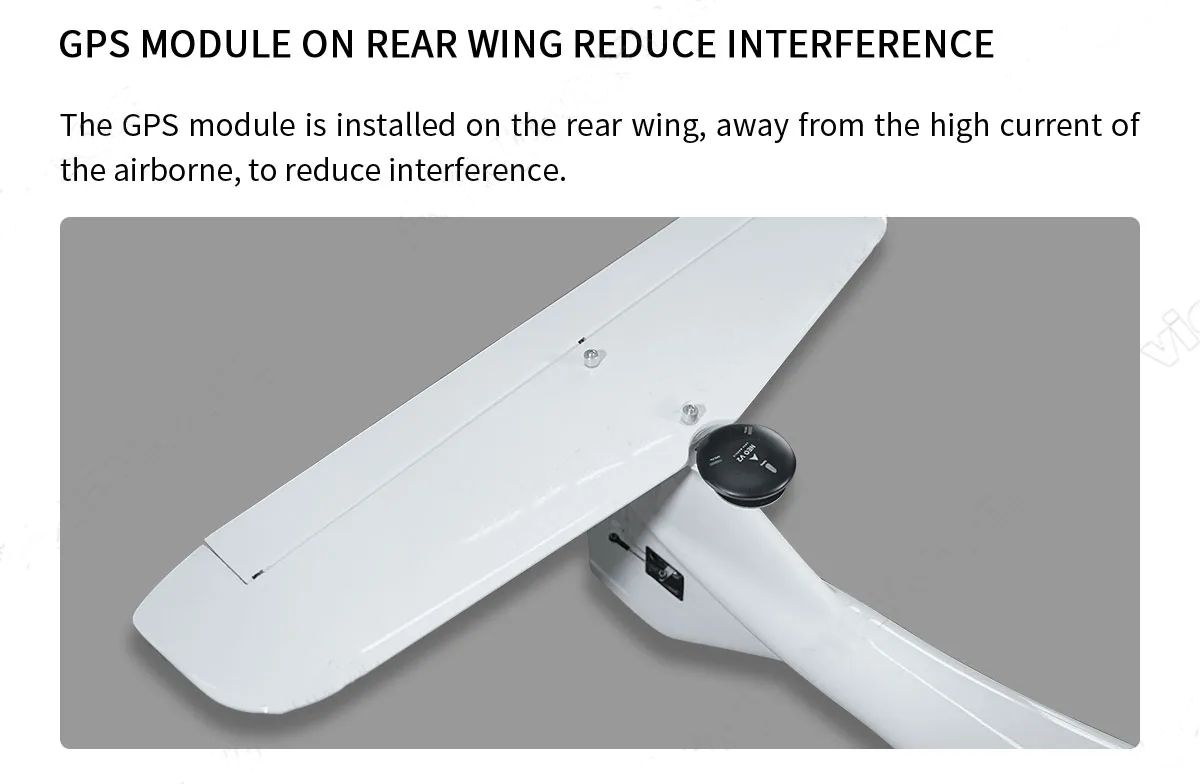

Equipped with Here+ RTK base station (optional), KYF230 can achieve centimeter-level positioning accuracy. The GPS module is installed on the rear wing, away from the high current of the airborne, to reduce interference. KYF230 adopts professional customized propulsion system with a powerful driving force. The ESC module of the fixed wing is installed on the outside, and the heat dissipation effect is better. The MTOW (maximum take-off weight) can reach up to 8.2kg, and its endurance is up to 120min with 1kg payload. It can withstand a maximum wind speed of 7.9 meters per second, and can perform  air missions in various complex environments. Meet various commonly used aerial survey cameras.
