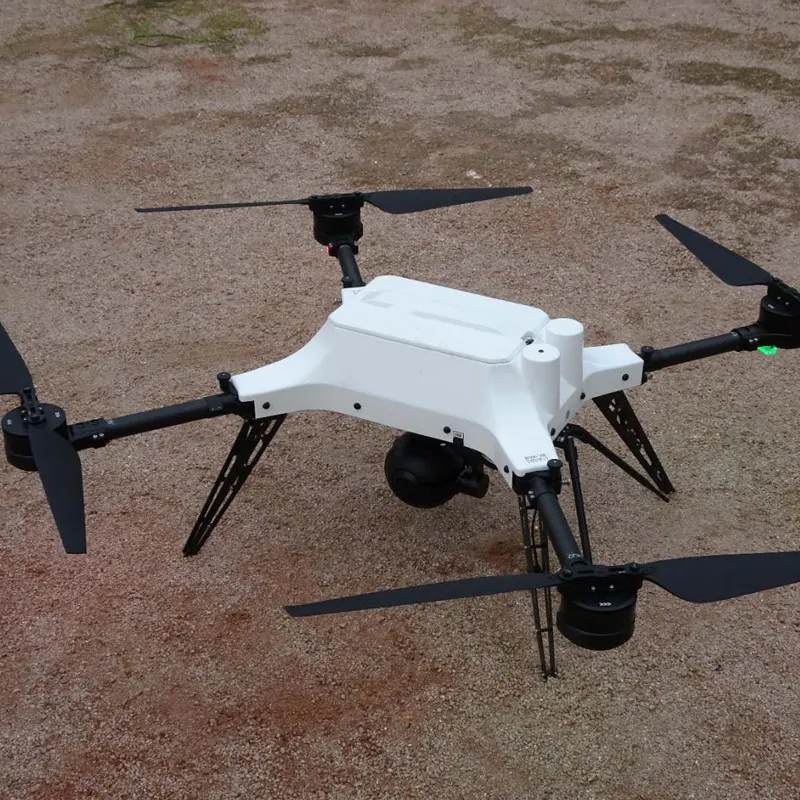

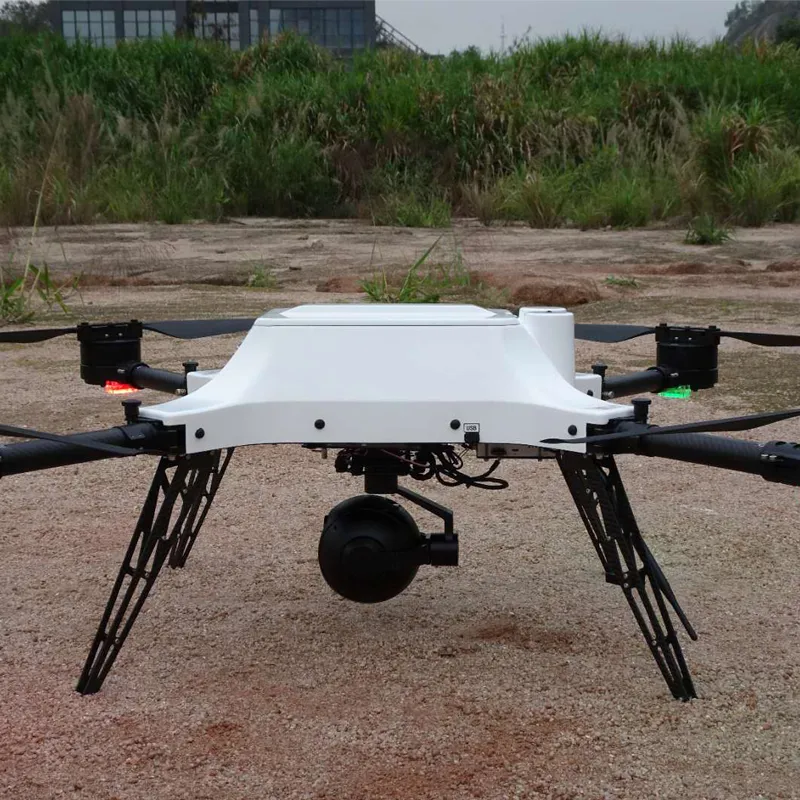

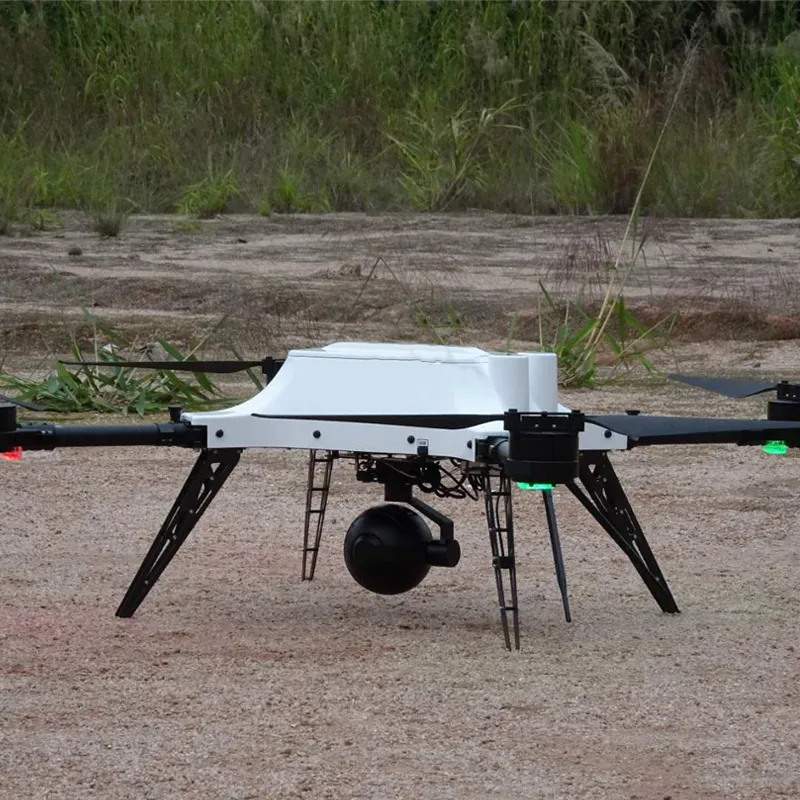

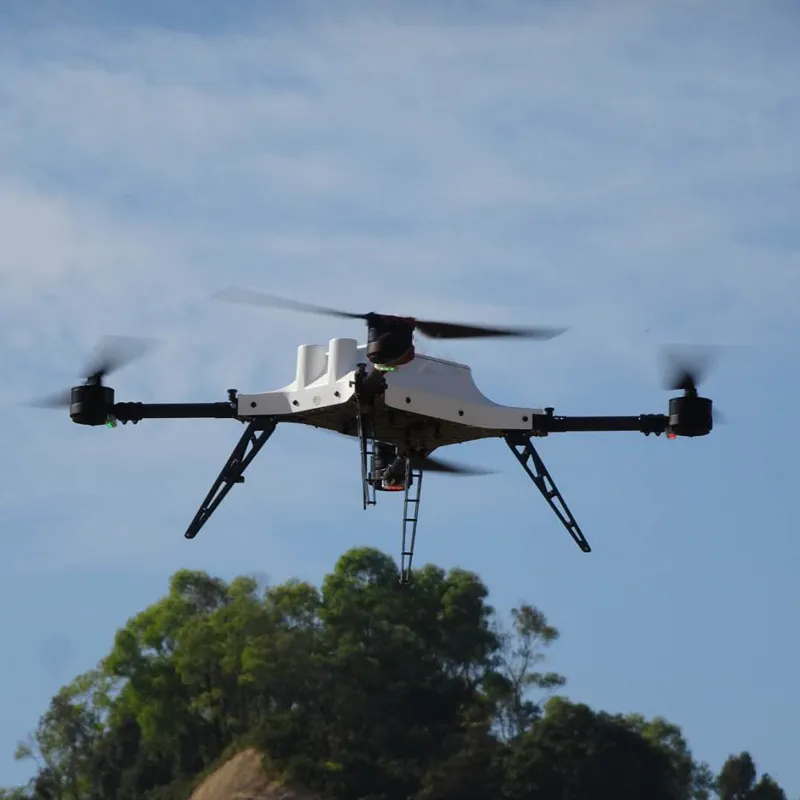

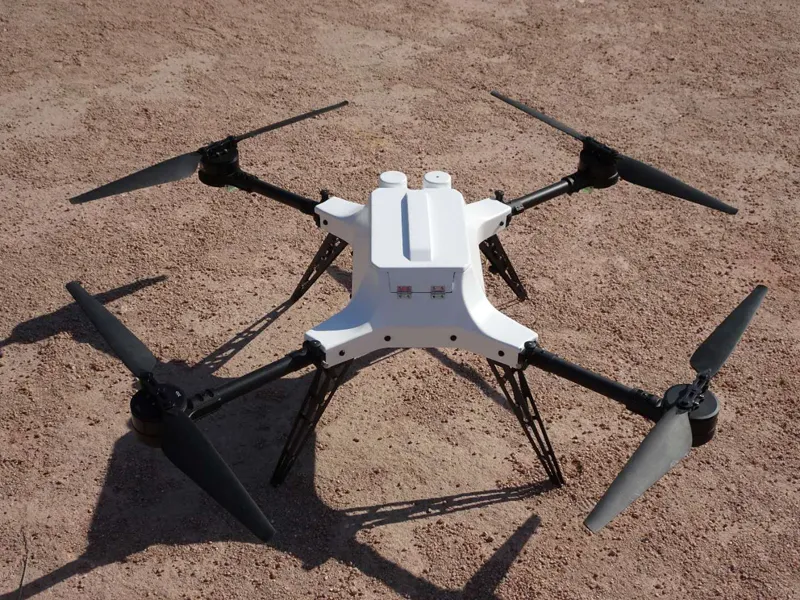

Industrial Grade Long Endurance Electric GPS 4 Rotor VTOL UAV Aerial Video Survey Drone

Product Description:

Essential details

Place of Origin:Suzhou, China

Brand Name:KYF

Model Number:KYF-04MR

Material:carbon fiber

Power:Electrical

Function:Altitude Hold Mode, With Camera, with G-sensor, One Key Takeoff / Landing, APP Control, With Remote Control, Foldable

Private Mold:Yes

Operator Skill Level:Beginner

Control Type:Remote Control

image transmission distance:＞10KM

Power System:Electric Powered

Takeoff &Landing:VTOL

Duration of flight:60 min

Cruise speed:30-50km/h

Maximum takeoff weight:22Kg

Payload:10Kg

Wind Resistance:Grade 7

Body material:Full composite material

Optical Accessory:Gimbal Camera Payload

Application:Mapping/Surveillance/Survey

Description:

Maximum takeoff weight:22KG

Max payload:10KG

Wheelbase:1200mm, foldable

Propeller:30-inch carbon fiber composite material, foldable

Duration:60min

Cruising speed:30-50km/h

Positioning and Navigation:GNSS / RTK high-precision navigation and positioning (optional)

Body material:Pure carbon fiber body / CNC7075 aviation aluminum

Motor type:Disc type brushless high-efficiency motor

Battery:31500mAh high performance polymer lithium

Control radius:Manual control 800 meters, automatic flight about 10km (optional 15, 20km)-according to the communication environment

Payload Flying altitude:Recommended less than 1000m

Maximum flight altitude:Recommended less than 2500m

Take off and land:Fully autonomous / stabilization

Flight mode:Manual, stabilization, GNSS positioning mode

Protection mode:Support low voltage protection function / runaway return

Wind resistance level:Less than 7 Grade

Hovering accuracy:Vertical: ± 0.5 m, horizontal: ± 1.5 m

Maximum ascent speed:6m/s

Maximum descent speed:4m/s

Stance:0.5 °, dynamic, after GNSS positioning

Yaw:2 °, dynamic

Positioning:1m, CEP

Standard operating load:Less than 4KG

Working temperature:-20℃~50℃

Standard Configuration:

1,  30Km image & data transmission link.

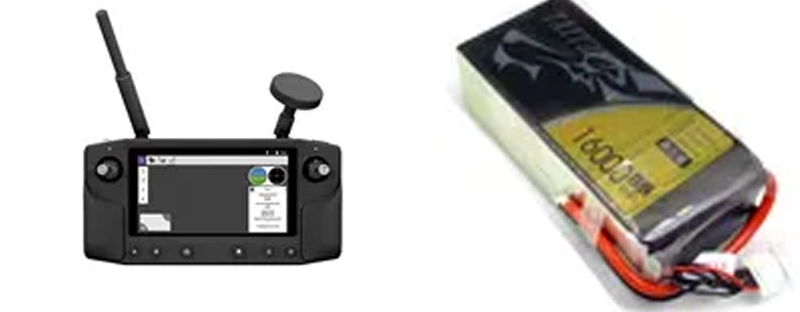

2,  30km handheld ground control station.

3,  22.2V/31500mAh polymer lithium battery x 2.

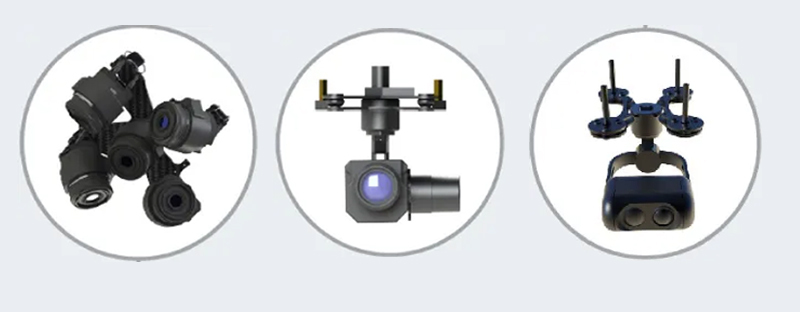

4,  Payload: 3D mapping camera, Visible optical, Dual sensor thermal camera (Optional)

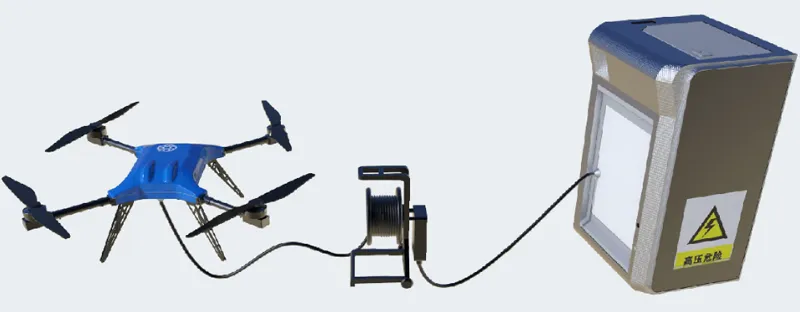

Tethered System (Optional):
