FINDER-30 TIR 30X Optical Zoom and Thermal Camera with 3-axis Gimbal for search and rescue Drone camera UAV

Product Description:

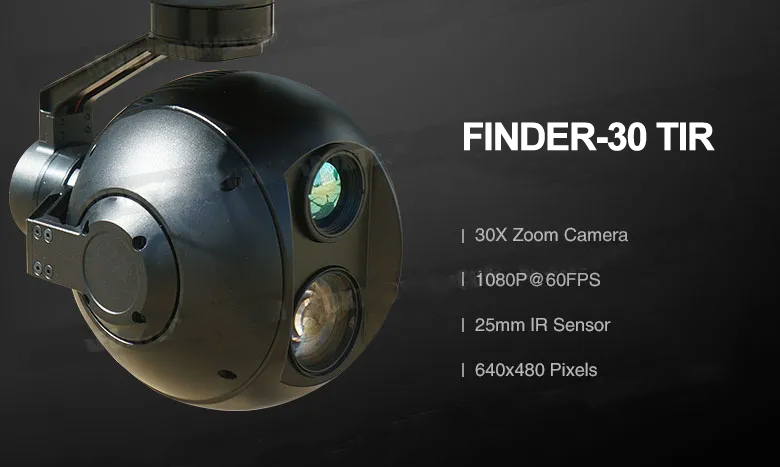

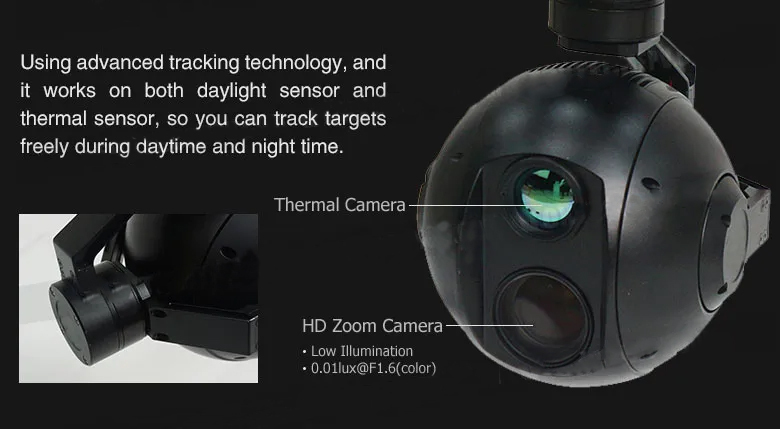

FINDER-30 TIR is a 3-axis high precision gimbal with 30X starlight zoom camera and thermal camera supporting both HDMI and Ethernet output. The 30X zoom camera provides 1080P 60FPS full HD video streaming and the 30X zoom capability enable you to see objects in detail over distance. The thermal camera with a 25mm IR sensor, pixels is 640x480. The thermal camera allows you to detect targets in the night or low visibile conditions.FINDER-30 TIR uses Sony sensor,and the minimum illumination is 0.01lux@ F1.6 (color).

Essential details:

Place of Origin:Suzhou, China

Model Number:FINDER-30 TIR

Warranty:1 Year

Special Features:NIGHT VISION, PAN-TILT

Sensor:CMOS

Style:PTZ camera

Function:PAN-TILT, NIGHT VISION, Thermal image

Video Compression Format:H.264

Data Storage Options:Micro SD card

Application:Outdoor, survey, inspection, UAV

Customized support:Online technical support, Software reengineering

Imager Sensor:1/2.8" 2.13 Megapixels Exmor R CMOS sensor

Video Output:1920*1080P@60fps

Focal Length:30X optical zoom, f=4.3~129mm, F1.6-F4.7

Thermal Camera:640x480

Pixel Size:17μm

Working Temperature:-20℃ ~ +80 ℃

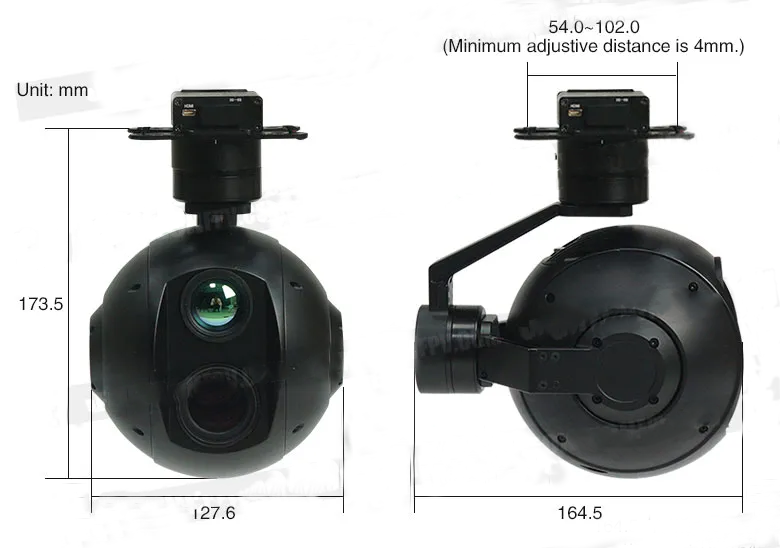

Size:164.5x127.6x173.5mm

Weight:1400g

Specifications:

White Light Camera:

Imager Sensor:1/2.8" 2.13 Megapixels Exmor R CMOS sensor

Video Output Resolution:1920*1080P@60fps

Focal Length:30X optical zoom, f=4.3~129mm, F1.6-F4.7

S/N ratio:More than 50dB

Auto focus:Less than 1s

Low illumination :Color:0.01 lx(F1.6,AGC on,1/30s)

Aperture:Φ16.0

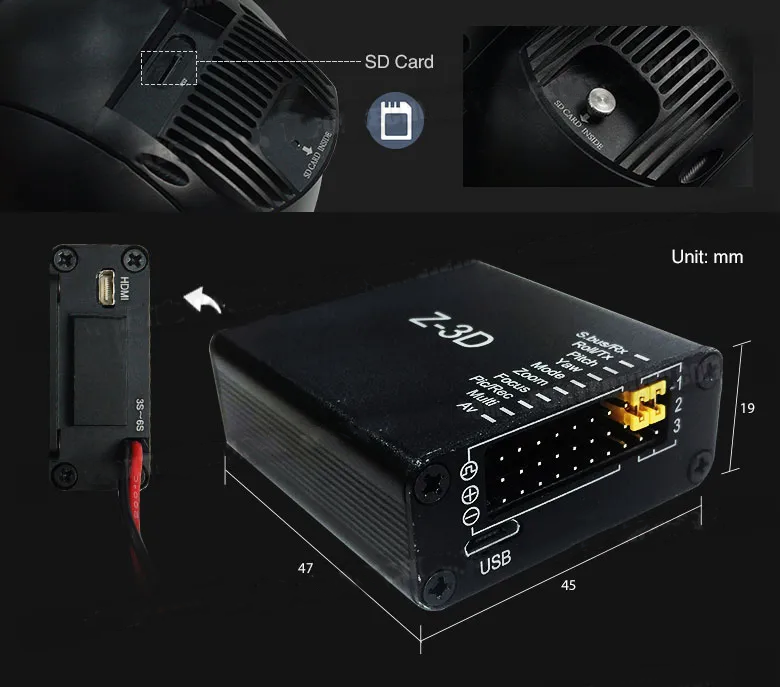

SD card:support Max 128G, class 10, FAT32 or exFAT format

Thermal Camera:

Pixels:640x480

Pixel Size:17μm

Emissivity Correction:Emissivity 0.01~1 adjustable

Image Enhancement:Automatically adjusts image brightness and contrast

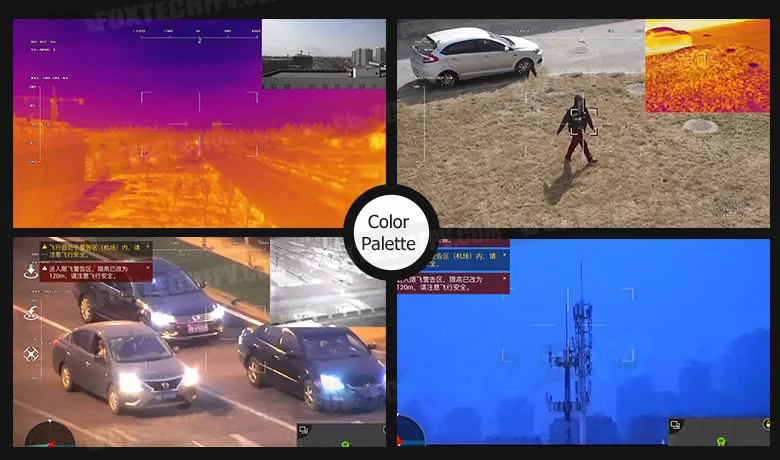

Color Palette:Black hot, white hot, pseudo color

Warning Temperature:-20℃~120℃

Gimbal system:

Input voltage:4S-6S

Static current:400mA(@16v)

Dynamic current:500mA(@16V)

Working Temperature:-20℃ ~ +80 ℃

Range of control angle:Pitch:±90° Roll:±85° Yaw:±170°

Control Precision:Pitch & Roll: ±0.01°Yaw: ±0.01°

Size:164.5x127.6x173.5mm

Weight:1400g

Control interface:Ethernet/PWM/Serial command

Tracking:

Data Refresh Rate:25Hz

Output lag:<3ms

Tracking Velocity:±32 pix/frame

Target Size:16x16 pixels - 128x128 pixels
