Delivery VTOL UAV, Remote airdrop system for emergency

Description ：

Delivery VTOL UAV, Remote airdrop system for emergency supplies(replenishment of medicines, food, water, plasma, etc.)

Delivery VTOL UAV platform is an electric long-haul composite wing vertical take-off and landing drone independently developed by our company. The overall layout of the composite wing with fixed wing and four-rotor is used to solve the vertical take-off and landing of the fixed-wing UAV in a simple and reliable way. The difficulty of the fixed-wing UAV has the characteristics of long flight time, high speed, long distance and the vertical take-off and landing of the rotorless drone. The vertical take-off and landing mode greatly enhances the environmental adaptability of the drone platform. The man-machine platform can operate smoothly in complex terrain and densely populated areas such as mountains, hills and jungles, greatly expanding the scope of application of drones, and is an ideal choice for industrial-grade drones.

The FDD50P UAV platform is equipped with industrial-grade vertical take-off and landing fixed-wing flight control and navigation system, as well as professional aerial aerial survey and inspection ground station software. It can ensure that the drone can fly autonomously throughout the process, without operator intervention to complete the autonomous take-off and flight status. In the flight phase of conversion, autonomous cruise, and autonomous landing, it also supports automatic route planning for 1000 waypoints and emergency standby plan for 100 waypoints.

The drone platform has the following features and advantages:
a) Practical and efficient: it has the characteristics of fixed-wing UAV’s long flight time, fast speed, long distance and large load;
b) Vertical take-off and landing: with the take-off and landing mode of the rotorless drone, greatly reducing the requirements for landing and landing and airspace;
c) low cost of use: no complicated and bulky launching and recycling equipment, no additional recycling sensors required;
d) Simple operation: integrated special flight control and navigation system, full autonomous flight, operators only need to send flight plans, no professional training and operational experience;
e) Compact system: no complicated auxiliary equipment, simple transportation, deployment, maintenance and withdrawal.

Specification

Wingspan: 3.8m

Body length: 2.5m

Maximum payload: 15kg
Maximum takeoff weight: 50kg

Life time: 2h@15kg payload, 4h@10kg payload

Flying radius: 200-400km (depending on the amount of oil)

Maximum control distance: Remote control (manual control): 1km

Ground station control (depending on the distance of the digital transmission): 30km standard

Maximum speed: 130km/h

Cruising speed: 100-120km/h

Maximum oil load: 12L

Lift limit: 4000m

Maximum wind resistance: 12m/s (6 wind)

Use environment: -10 °C +45 °C; anti-light rain

Climb/lower power battery: 4*14000mAh-6S lithium battery

Take-off and landing mode: vertical takeoff and landing
Shipping size: 1.6*0.7*0.6m (length * width * height)

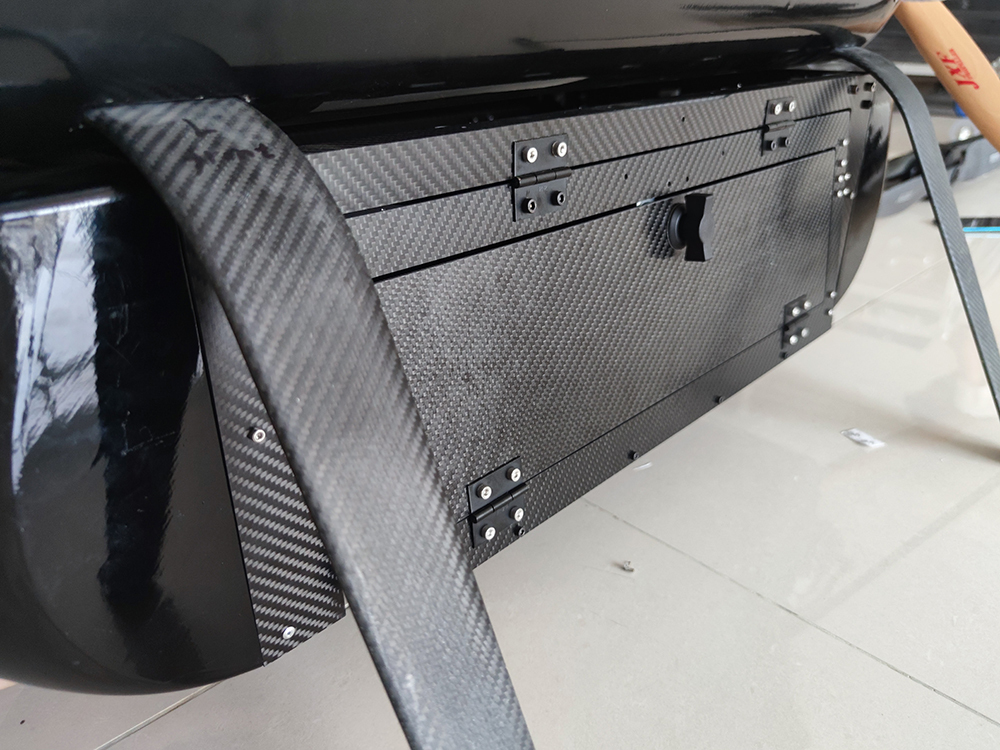

Drop box size: Length 462MM, width 296MM, height 169MM
