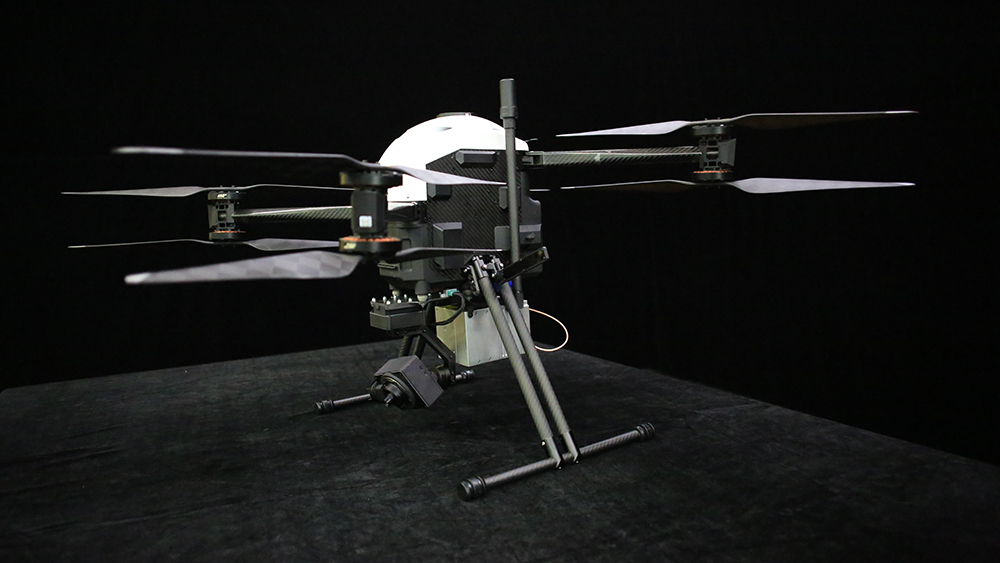

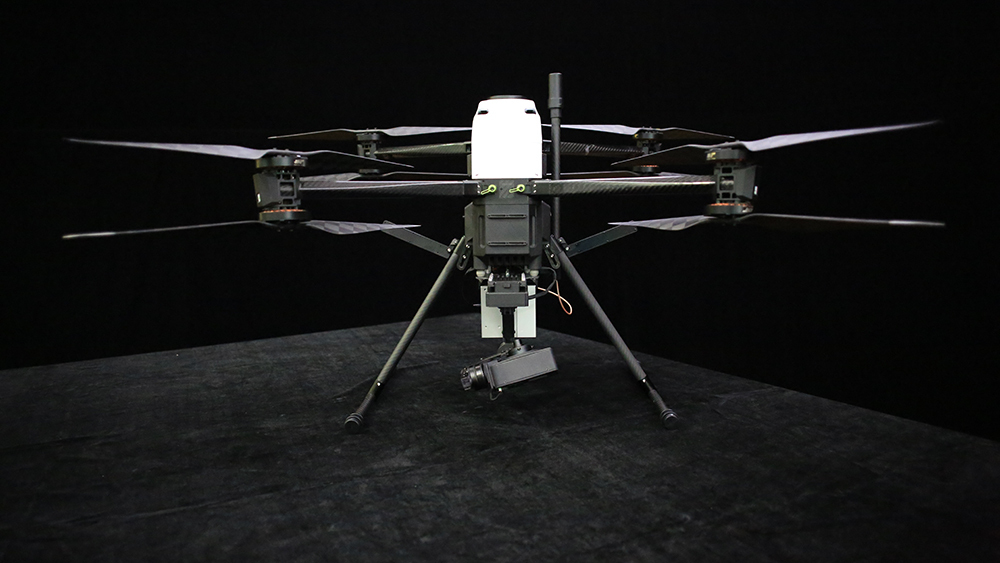

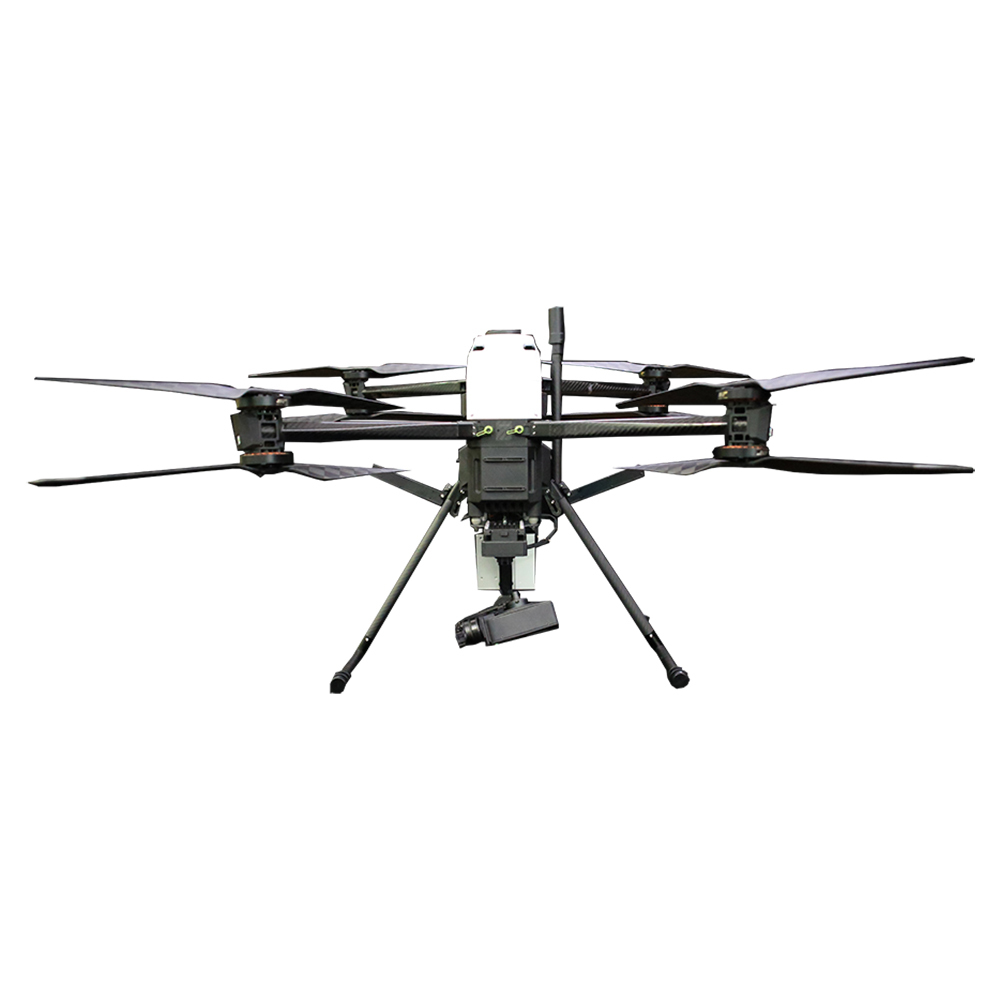

Coaxial Octocopter drone 40 minutes endurance with 2.5KGS payload

Description ：

Coaxial Octocopter drone 60 minutes endurance with 2.5KGS payload

Coaxial Octocopter Pro is a small size drone combines a rugged folding design and multiple configurability to work as a solution for a variety of industrial applications, such as mapping, inspection and delivery. The highlight of the co-axial design is to effectively increase the load capacity .  The design of whole octocopter system will not be affected if one motor or propeller stops running, which is still able to land safely.  Electrically powered unmanned octocopter system Autonomous operation – waypoint navigation Designed for various applications requiring the automatic operation with electro-optical payloads.

• 8 rotors configured coaxially for redundancy
•


• Foldable for easy transportation
•


• Resistant to rain and bad weather conditions
•

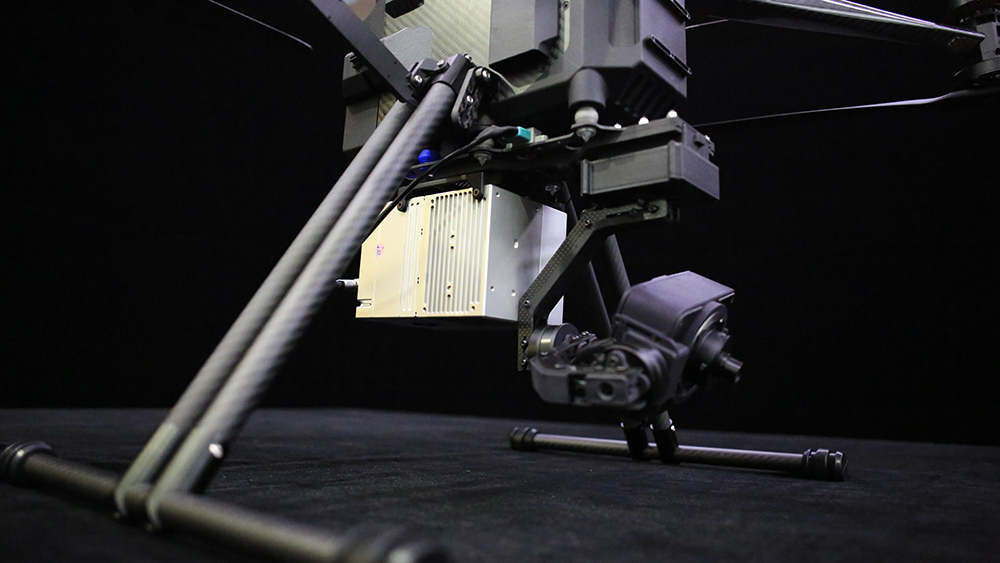

• Fully enclosed modular payload bay
•

• For sensor modules weighing up to 5 kgs
•

• Made from lightweight carbon fiber materials
•


• Digital live video and telemetry data transmission
•


• Navigation light system is helpful in various situations
•


• High-efficiency cooling system
•


•  Landing gear is adjustable so that different types of equipment can be mounted
•


• Dual-battery system ensures longer flight time, which boosts up to 80 minutes without payload and 40 minutes with 5kg payload

Specification:

Diagonal wheelbase: 815MM

Unfolded Dimensions: 960*960*450MM

Folded Dimensions: 400*200*900MM

Suggested Max payload: 5KGS

Max take-off weight:15KGS

Without battery: 4KGS

With battery: 10KGS

Endurance: 80 minutes without payload, 40 minutes with 5KGS payload

Max wind resistance: 16m/s

Ingress protection rating: IP65

Battery: 2 unts of 7S 28000mAh Li-ion

Operating temperature: -25℃ to 60℃

Max flight Ceiling: 5000m

Max speed: 18m/s with GPS mode

Your Purchase Includes:

RTF version

1x Pro Frame

8x Motor and ESC

4x (pair) 22 inch Carbon Fiber Propeller

1x Pixhawk Cube Orange Standard Set with Here 3 GNSS

1x FD16 All-in-one Portable Ground Control Station

2x 7S 28000mAh Li-ion Battery

1x K4 Battery Charger

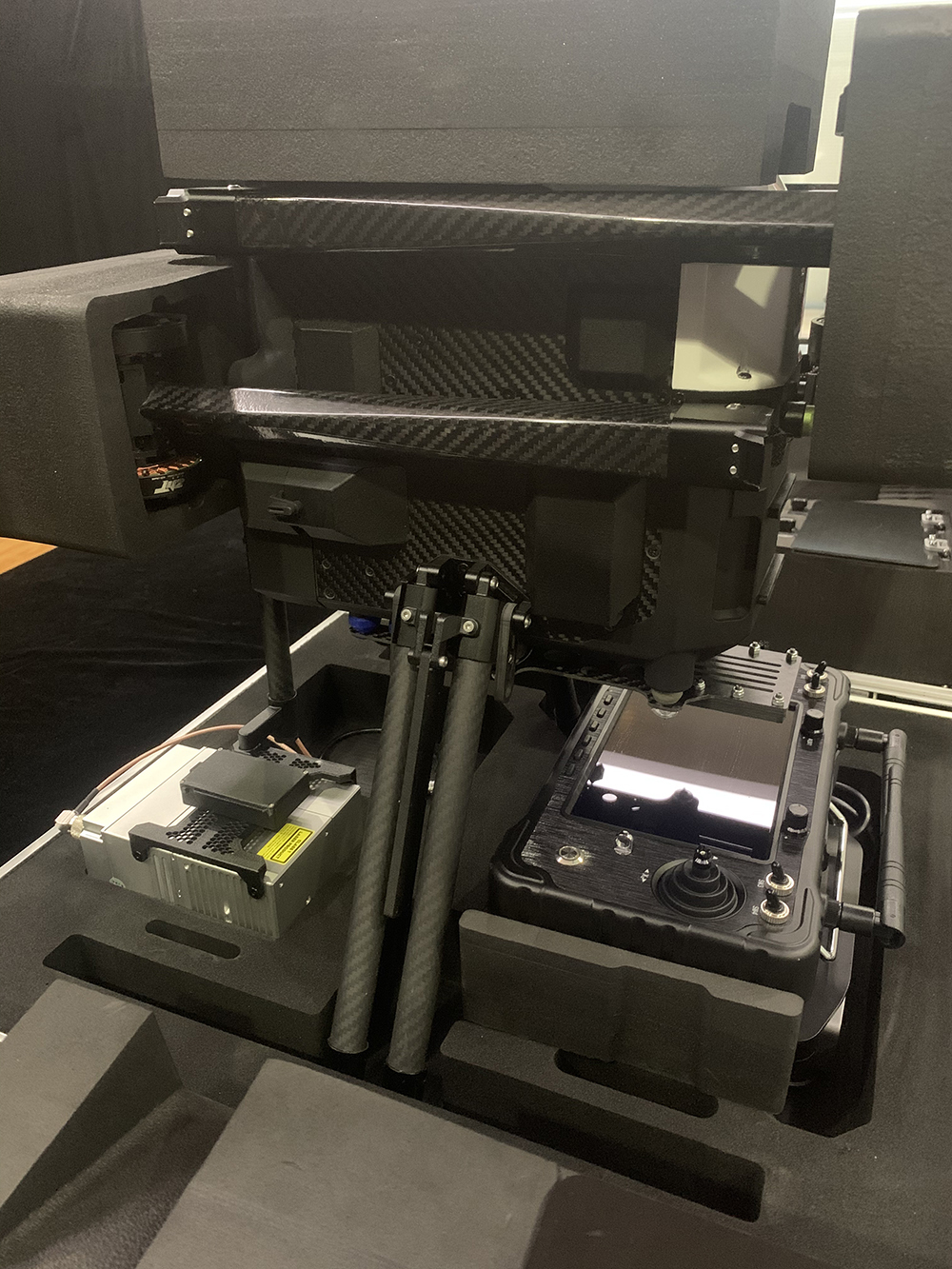

1x Carrying Case
