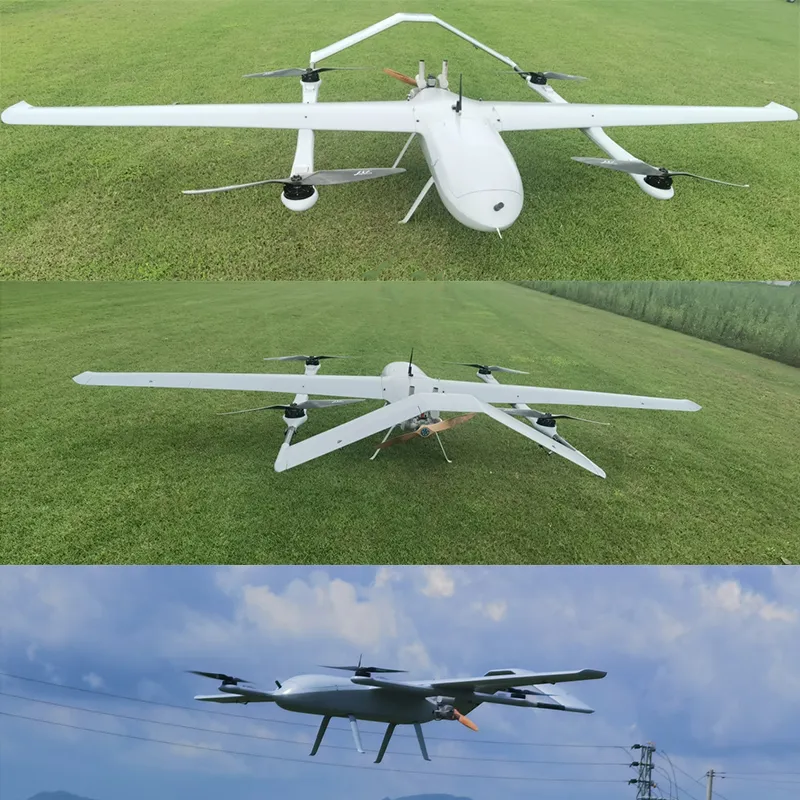

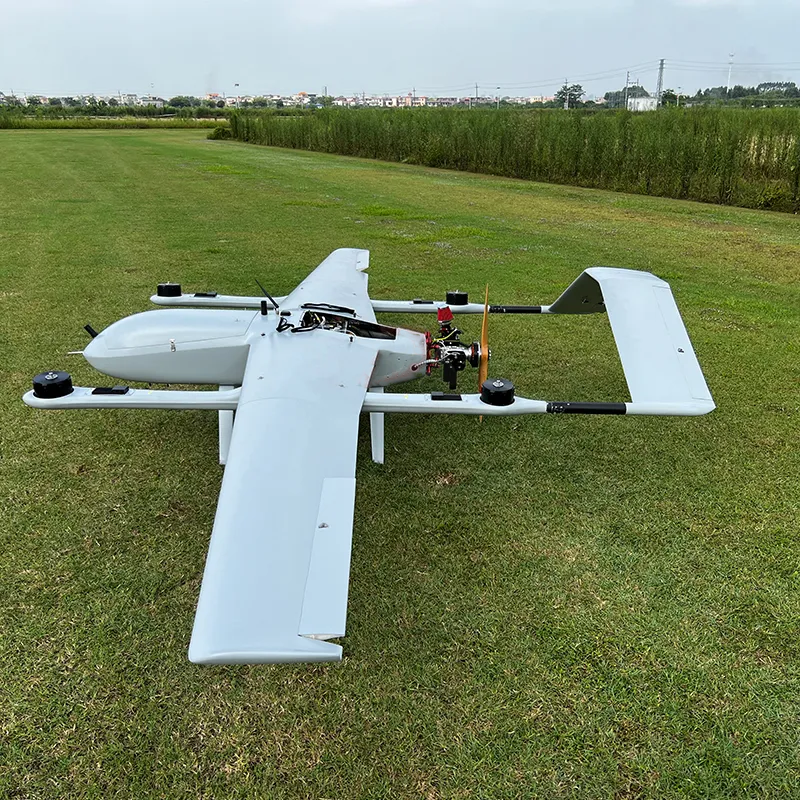

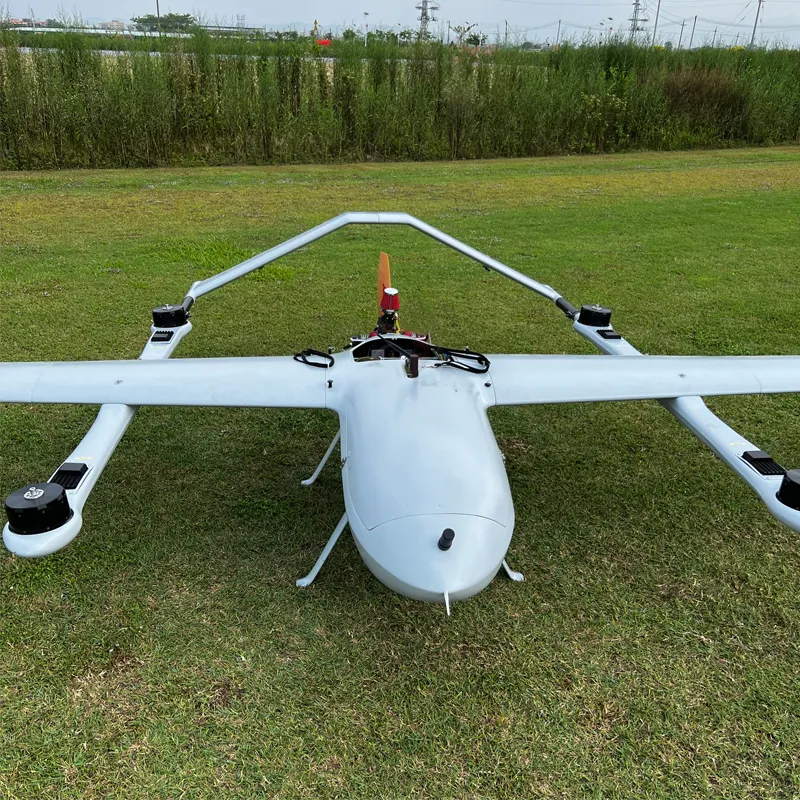

KYF-VT90 90KG Takeoff Weight Professional Long Range Endurance Gasoline Fuel Engine VTOL UAV Drone

Product Description：

The KYF-VT90 UAV platform is equipped with an industrial grade vertical takeoff and landing fixed wing flight control and navigation system, professional aerial photography and aerial survey, patrol ground station software, which can ensure the UAV to fly autonomously throughout the whole process, without the intervention of operators to complete autonomous takeoff, flight state transition, autonomous cruise, autonomous landing and other flight stages, while supporting the automatic route planning of 1000 waypoints and the emergency alternate landing plan of 100 waypoints.

Essential details

Type:Gyroplane

Place of Origin:Suzhou, China

Engine:176CC, EFI

Takeoff & Landing:VTOL

Flight duration:6 Hours@20Kg / 2 Hours@30Kg Payload

Maximum fuel capacity:25L

Cruising speed:120~150km/h

Continuous flight radius:100-400km(Based on fuel capacity)

Max Payload:30Kg

Wind Resistance:Grade 6

Body material:Full composite material

Application:Survey/Mapping/Surveillance

Model features：

Vertical take-off and landing：Low requirements for landing and landing points, high operating efficiency.

Simple structure：Easy to operate in a short time.

Full autonomous flight：One-button take-off, safe and efficient.

High security：Double protection for emergency landing and open umbrella.

Flight duration：6 Hours@20Kg Payload, 2 Hours@30Kg Payload

Aircraft Parameters：

Cruising speed：120~150Km/h

Radius of flight：100-400km(Based on fuel capacity)

Aircraft length：2.6M

span Wing ：4.8M

Maximum takeoff weight：90KG

Flight altitude：Maximum 5000m

Max Payload：30Kg

Wind resistance：Grade 6

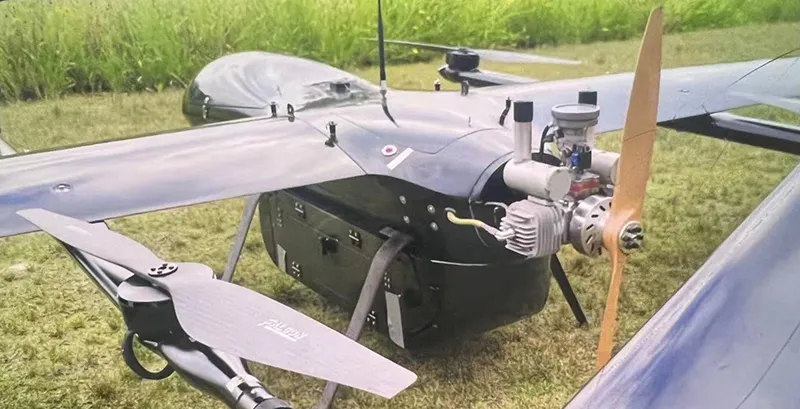

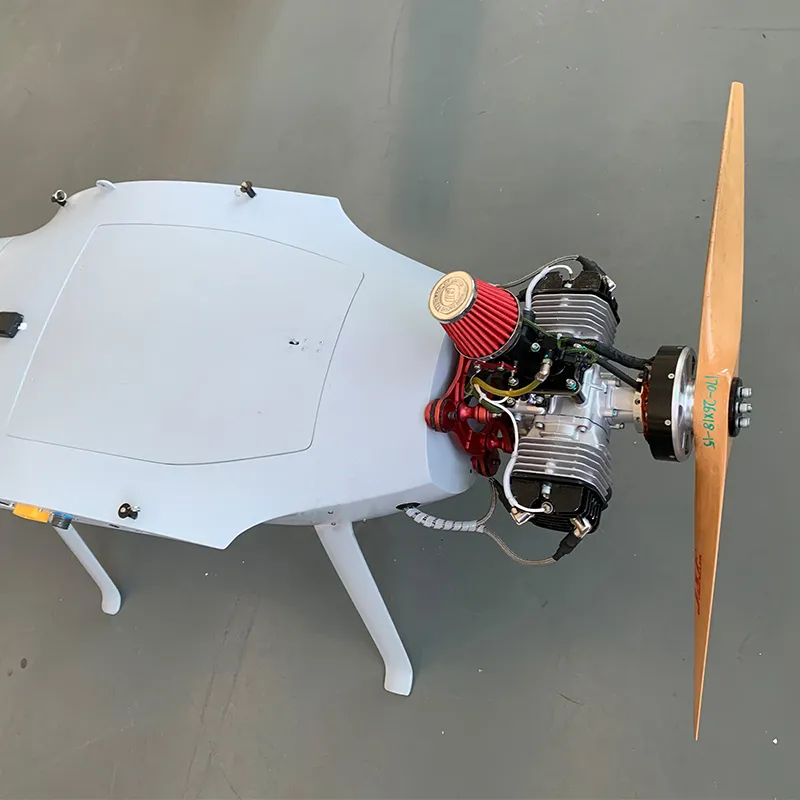

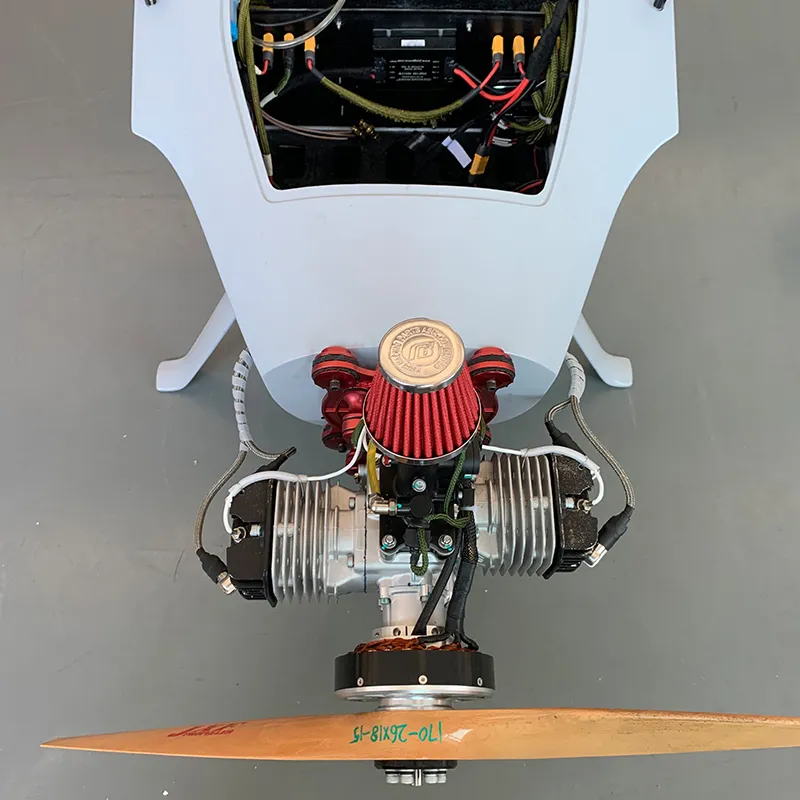

Engine：GP 176CC, EFI

Maximum fuel capacity：25L

Body material：Full composite material

Autopilot performance:
full coverage of the model;
Satellite navigation
[real-time GPS/GLONASS/Galileo/B Multi-system signal reception];
attitude accuracy 0.5°, heading accuracy 1°;
centimeter-level positioning;
High precision and high dynamic motion measurement.

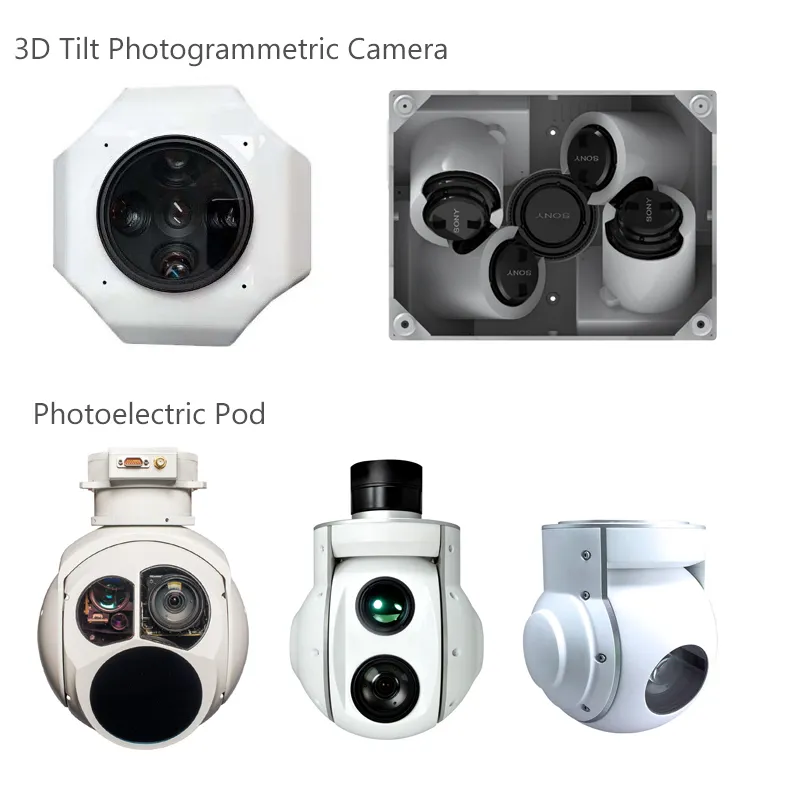

Application Payload (Optional)：

Satellite communication link. (Optional)

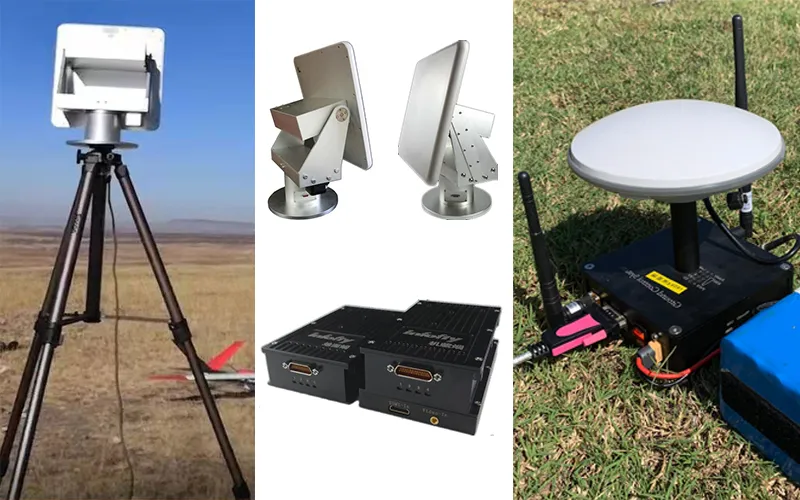

30-200Km data & video transmission link,

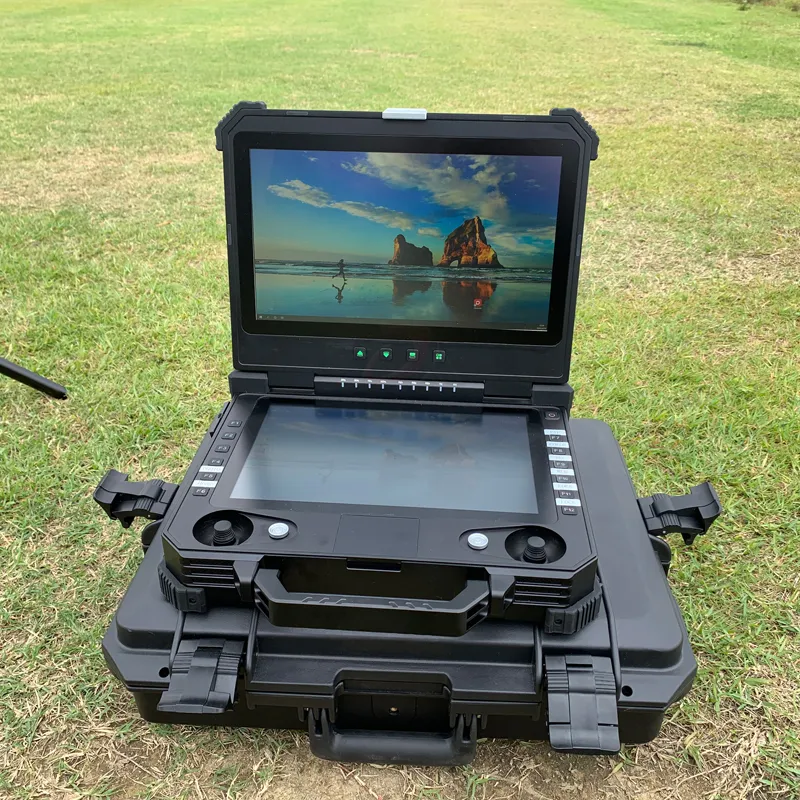

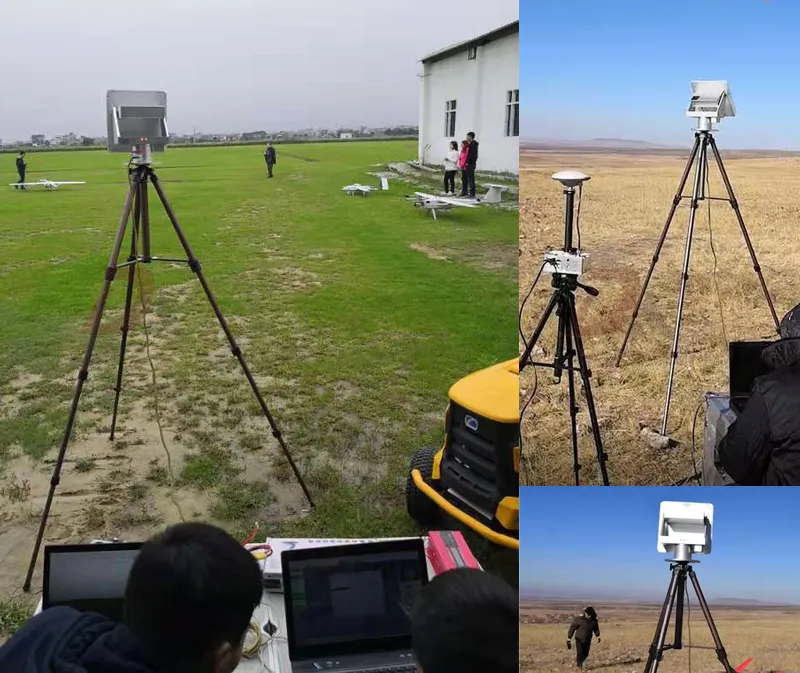

Ground Control Station

ITEM：Functions/Technical Parameters

FEATURES：
1. UAV control: parameter setting, flight check, route planning, flight data display, flight status monitoring, abnormal alarm, flight data saving and playback;

    2. Video image display: real-time display of the pod capture image:

    3. Data link: integrated flight control data link, HD Image transmission link;

    4. 12V DC power supply: 12V DC power output (maximum power 24W);

    5. WiFi function: The computer can connect to the public network via WiFi;

    6. USB interface: 3 USB device connection interfaces;

    7. Image output: 1 HD HDMI video output interface;

    8. Can integrate image transmission and digital transmission links;

    9. Other functions  can be customized  according to customer requirements.
